Tab Down Unshielded 1X1 SMT Antenna Connector

Dongguan Penghui Electronics Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Tab Down Unshielded 1X1 SMT Antenna Connector

  • 1
  • 2
  • 3

Brand Name : PHCONN

Model Number : 1052-208073

Certification : ISO9001,SGS,UL,CE,REACH

Place of Origin : GuangDong, China

MOQ : 1000 PCS

Price : Negotiable price

Payment Terms : T/T in advance

Supply Ability : 5,000,000 PCS / Month

Delivery Time : 3-30 work days

Packaging Details : vacuum package,boxes in a catrton

Type : RJ45

Keywords : rj45 connector/rj45 female connector/rj45 jack/rj45 socket

Product name : RJ45 Connector

Color : Customize

Insulation resistance : 500 MΩmin

Housing material : Glass Filled Polyester 94V-0 PBT

Pin : 8P8C

Durability : 750 CYCLES MIN

Contact Now

Unshielded 1X1 SMT Antenna Connector Tab Down PHC-1052-208073



Product Information



Categories Connectors, Interconnects
Modular Connectors
Application-LAN ETHERNET(non-POE)
Connector Type RJ45
Number of Positions/Contacts 8p8c
Number of Ports 1x1
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.537" (13.65mm)
LED Color Green - Yellow
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Material Phosphor Bronze
Packaging Tray
Operating Temperature 0°C ~ 70°C
Contact Material Plating Thickness Gold 6.00µin/15.00µin/30.00µin/50.00µin
Shield Material Brass
Housing Material Thermoplastic
RoHS Compliant YES-RoHS-5 WIth Lead in Solder Exemption



ELECTRICAL:



1. VOLTAGE RATING:125 VAC RMS.

2. CURRENT RATING:1.5 AMP.

3. CONTACT RESISTANCE:50 milliohms max.

4. INSULATION RESISTANCE:500 megohms min @ 500V DC.

5. DIELECTRIC WITHSTANDING

RESISTANCE:1000V AC RMS 50Hz. 1min.

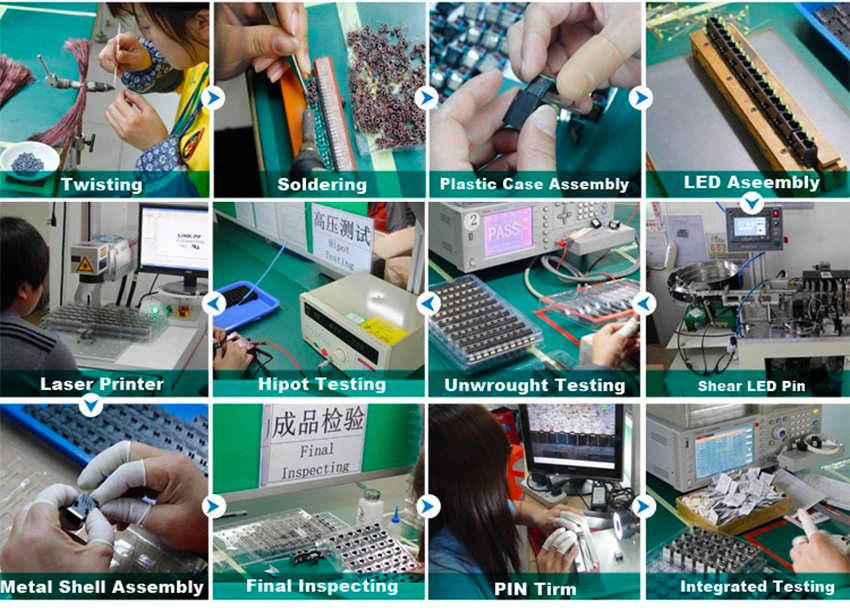

Testing:

Tab Down Unshielded 1X1 SMT Antenna Connector




Product Tags:

1X1 SMT Antenna Connector



Tab Down SMT Antenna Connector



SMD RJ45 Female Connector


Buy cheap Tab Down Unshielded 1X1 SMT Antenna Connector product

Tab Down Unshielded 1X1 SMT Antenna Connector Images
