Through Hole 10BASE 100BASE RJ45 PCB Connector RMS-001L-08A0-GY

Brand Name : PHCONN

Model Number : RMS-001L-08A0-GY

Certification : UL

Place of Origin : CHINA

MOQ : 100

Price : 0.5-0.8 USD

Payment Terms : L/C, T/T

Supply Ability : 10000 pcs/week

Delivery Time : 5-15 work days

Packaging Details : Carton packaging Blister boxed products

Gender : Female

Type : RJ45,Connector

Application : PCB,Audio & Video,Telecom,Internet Cable,PRINTER

Material : PC+ Phosphor Bronze+ Circuit Board

Color : silvery&black

Connector type : ethernet RJ connector

Insulation resistance : 1000 megohms min @ 500 vdc

Item : ethernet rj45 modular female pcb jack

Contact Now

RMS-001L-08A0-GY Through Hole 10/100BASE RJ45 PCB Connector



Product Information

Part Number: RMS-001L-08A0-GY Belfuse Part Number: 08B0-1G1T-36-F
Part Status: Active Connector Type: Jack
Number of Positions/Contacts: 8p8c (RJ45, Ethernet) Application-Lan: Ethernet(NoN PoE)
Number of Ports: 1x1 Port Speed: 100 Base-T
Latch: UP Cores per Port : 4
Orientation:
90° Angle (Right)
PCB Mount Angle :
SIDE ENTRY
Shield EMI Tabs: With
LED Option :
Green/Green Leds
PCB: FR4 PCB Retaining Post: T-POST
Temperature: 0℃ TO 70℃
Contact Mating Area Plating :
GOLD 6u"/15u"/30u"
Turns Ratio RX/TX: 1CT:1CT Configuration RX/TX: T,C



Application:

Through Hole 10BASE 100BASE RJ45 PCB Connector RMS-001L-08A0-GY

Workflow:

Through Hole 10BASE 100BASE RJ45 PCB Connector RMS-001L-08A0-GY

Other products:

Through Hole 10BASE 100BASE RJ45 PCB Connector RMS-001L-08A0-GY




Product Tags:

RMS-001L-08A0-GY RJ45 PCB Connector



Through Hole RJ45 PCB Connector



100base rj45 pcb jack


Buy cheap Through Hole 10BASE 100BASE RJ45 PCB Connector RMS-001L-08A0-GY product

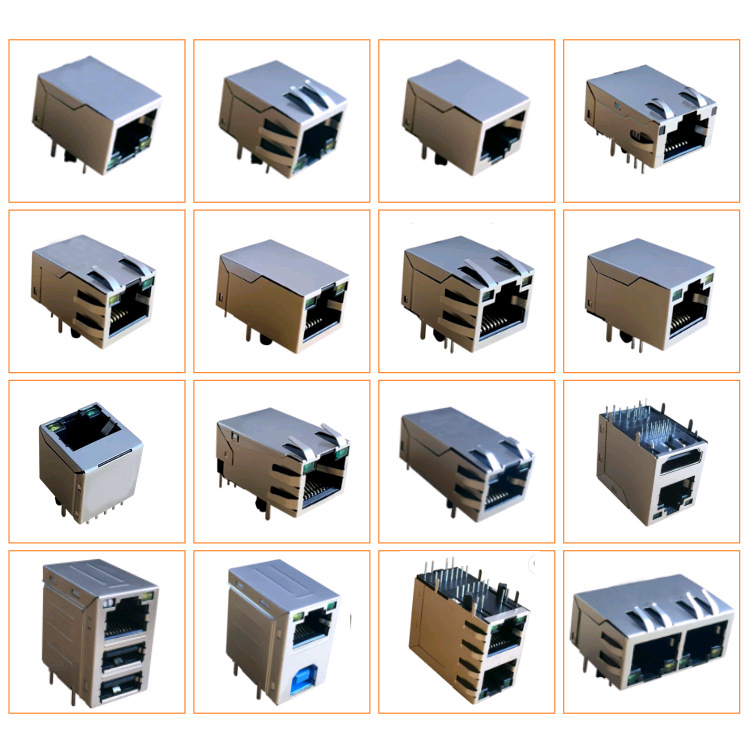

Through Hole 10BASE 100BASE RJ45 PCB Connector RMS-001L-08A0-GY Images
