Power over Ethernet / PoE + 10 / 100 Base-TX RJ45 Jack with Magnetic Module


Specifications



Part Number

Manufacturer
Part Number

Manufacturer

Description

RML-165A-10F6-GY-HF

RML-165A-10F6-GY-HF

PHC

Power over Ethernet / PoE + 10 / 100 Base-TX RJ45 Jack with Magnetic Module



Series

Connector Type

Applications

Mounting Type

Connectors, Interconnects

PHC RJ45 Female

10/100 /1000 Mbps

Insert Plate



Orientation

Termination

LED Color

Shielding

90° Angle (Right) Side enter

Solder

G/Y

Shielded






Electrical:



1. Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement

2. High performance for maximum EMI suppression

3. 350uH minimum OCL with 8mA bias current

4. Current rating 1.5 amps

5. Voltage rating 125vac

6. Insulation resistance 500 MΩmin

7. Contact resistance 30 MΩmax

8. Withstanding voltage AC 1500V RMS 50Hz or 60Hz 1 min

9. Insertion loss: -1.2dB maximum @100KHz-100MHz

10. Return loss: -18dB minimum @1MHz-30MHz

11. 14dB minimum @30MHz-60MHz

12. 12dB minimum @60MHz-80MHz

13. 10dB minimum @80MHz-100MHz

14. Common mode rejection: -30dB minimum @1MHz-100MHz

15. Cross talk: -30dB minimum @1MHz-100MHz



Operating and storage temperatures:



1. Operating temperatures: -40 to 85℃

2. Storage temperatures: -40 to 85℃

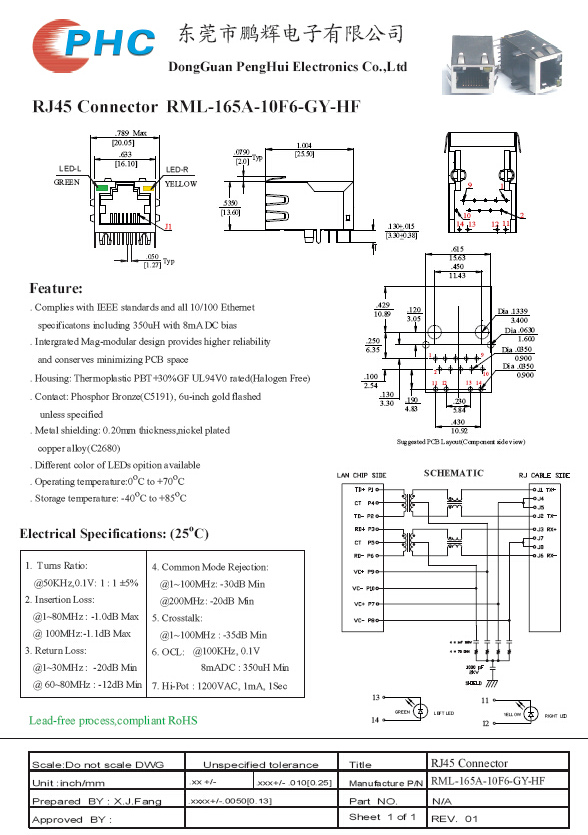

Drawing

Power over Ethernet / PoE + 10 / 100 Base-TX RJ45 Jack with Magnetic Module
( PHC )

Power Over Ethernet / PoE Rj45 Jack + 10 / 100 Base-TX With Magnetic Module


Why Choose PengHui

Quality :

Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing , packing .All the step are doing by ourself . So we can control the quality .

  Manufactured under strict controls

  RoHS compliance

  ISO 9001:2008

  OEM  for PULSE

  UL Certification

  Active Environmental policy

  Reach Cetitifaction

 Every module  tested 3times  (not just batch tested)
