2 X 2 Port RJ45 With10 / 100/1000 MbpsTransformer 90 Degree RJ45 Jack
Spectifications
Feature:
1. Complies with IEEE standards and all 10/100 Ethernet specificatons including 350uH with 8MA DC bias
2. Contact:Phosphor Bronze, 6u-inch gold flashed unless specified
1. Housing:Thermoplastic LCP UL94V-0 rated
2. Operating Temperature:0℃ --70℃
3. Storage temperature:-40℃--85℃
Peak reflow temperature rating 245℃
1.Minimum1500Vrms isolation perIeee 802.3requirement
Electrical Specifications:
1.Turns Ratio:Tx & Rx+1:1±5%
2.Insertion Loss:1-30MHz:-1.0dB Max
3.Return Loss:1-30MHz:-16dB Min; 60-80MHz:12dB Min
4.Common Mode Rejection:1-100MHz:-30dB Min;200MHz:-20dB Min
5.Crosstalk:1-100MHz:-30dB Min
6.OCL:100KHz,0.1V,8MADC:350uH Min
7.Hi-Pot:1500VAC,1mA,1Sec
Lead-free process,compliant RoHS
2 X 2 Port RJ45 With10 / 100/1000 MbpsTransformer 90 Degree RJ45 Jack

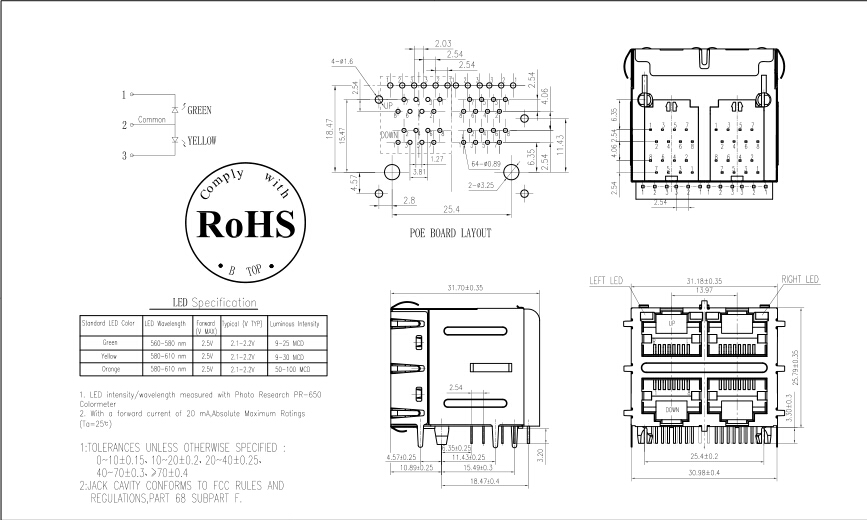

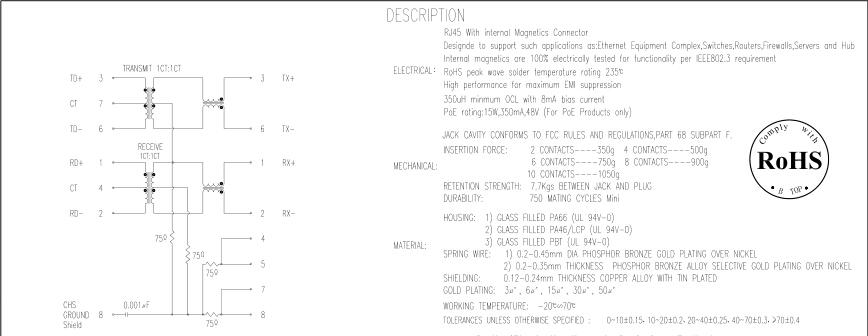

Line Drawing
