100 Base Lan Board To Board Connector Tab Down Connector 1 Port 21.1mm

100 Base Lan RJ45 With Transformer Tab Down Connector 1 Port 21.1mm

Specifications

Feature:

1. Complies with IEEE standards and all 10/100 Ethernet specificatons including 350uH

    with 8MA DC bias
2. Contact:Phosphor Bronze, 6u-inch gold flashed unless specified
3. Housing:Thermoplastic LCP UL94V-0 rated
4. Operating Temperature: 0℃ --70℃
5. Storage temperature: -40℃--85℃

Peak reflow temperature rating 245℃

1. Minimum1500Vrms isolation perIeee 802.3requirement

Electrical Specifications:

1. Turns Ratio: Tx & Rx+1:1±5%
2. Insertion Loss:1-30MHz:-1.0dB Max
3. Return Loss:1-30MHz:-16dB Min; 60-80MHz:12dB Min
4. Common Mode Rejection:1-100MHz:-30dB Min;200MHz:-20dB Min
5. Crosstalk:1-100MHz:-30dB Min
6. OCL:100KHz,0.1V,8MADC:350uH Min
7. Hi-Pot:1500VAC,1mA,1Sec

Lead-free process,compliant RoHS

Drawing

100 Base Lan RJ45 With Transformer Tab Down Connector 1 Port 21.1mm

(PHC)

Why Choose PengHui Quality

Quality :

World’s Leader supplier of Integrated RJ45 Connector and PCB connector

Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing,

packing .All the step are doing by ourself. So we can control the quality.

1) Manufactured under strict controls.

2) ISO 9001:2008

3) UL Certification

4) Reach Cetitifaction

5) RoHS compliance

6) OEM  for PULSE

7) Active Environmental policy

8) Every module  tested 3times  (not just batch tested)

Unit Price

Charge only 35~60% of Pulse ,(Midcom), Bothhand Belfuse, Tyco, Halo,....Etc

All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as possible
PHC consists of 3 subordinations , located partly in  Hunan ,Hubei ,Guangdong (PHC)
With large scale of production lines, we can reach to cost reduction at the most extent

Design&Technical strength

We have many more than 20years experience in connector industry engineer can support

your new project.Design a new tooling time:30-45 workdays

Production&Testing

PHC have more than 30 units automation equipments to product as possible
PHC Every  Magnetic RJ45 tested 3times  (not just batch tested)
PHC Every SMT part used Automation testing and packing.


Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions

                                                                                                     -------------  PHC  Sales & Support Team

fpc zif connector

fpc connector 0.5mm pitch

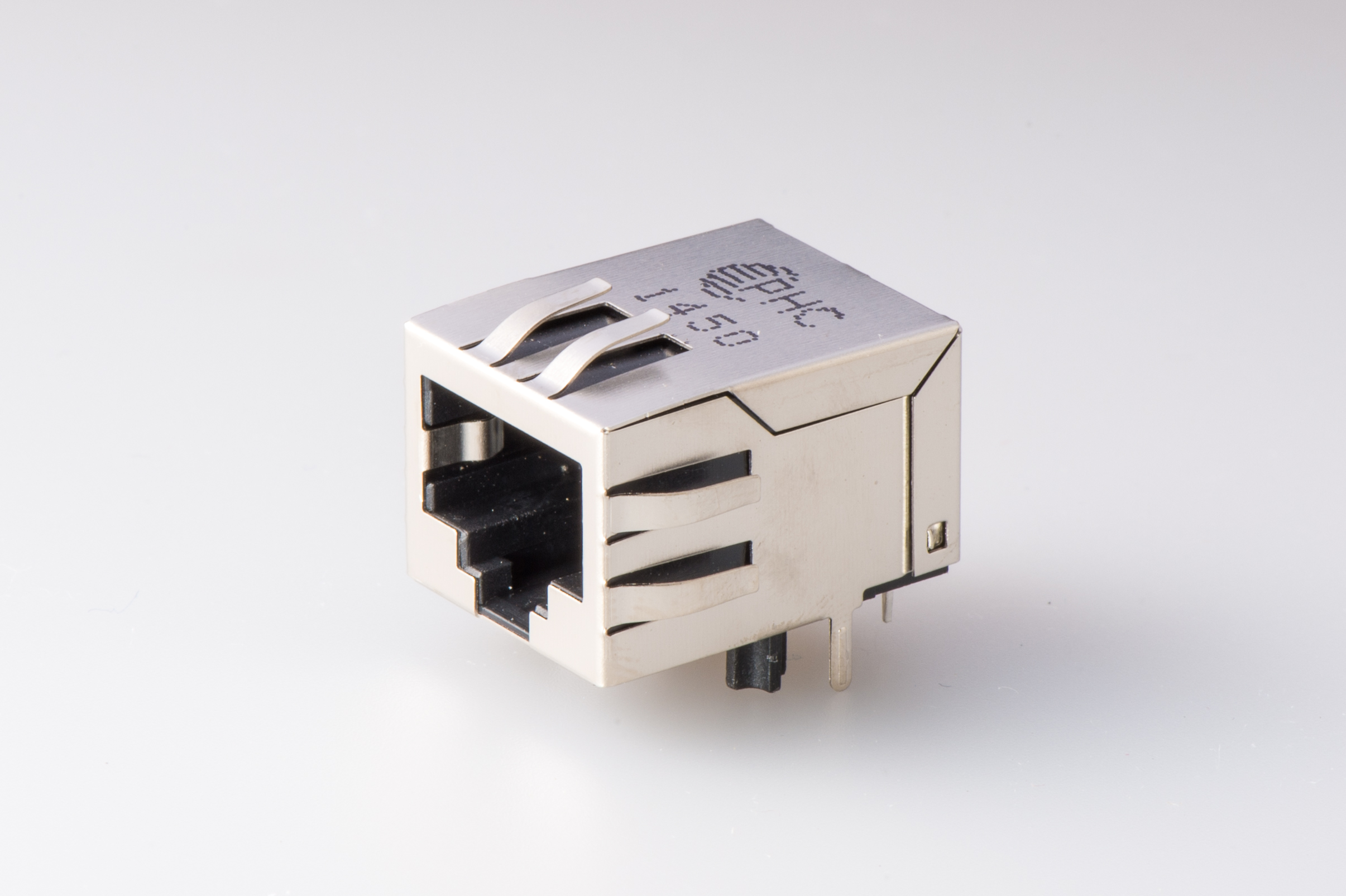

100 Base Lan Board To Board Connector Tab Down Connector 1 Port 21.1mm Images
