4 Port 90 Degree RJ45 With LED And Shielded , 8P8C Side Enter Gold Plating

  • 1
  • 2

Brand Name : PHCONN

Model Number : 1051-208050

Certification : ISO9001 : 2008 , SGS , RoHs , UL

Place of Origin : GuanDong , China ( Mainland )

MOQ : 500 PCS

Price : USD 0.5 ~ 1.0 PCS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 5,000,000 PCS / Month

Delivery Time : 10 - 20 Work Days

Packaging Details : 100 pcs in 1 tray , 36 tray ( 2500pcs ) in carton ;

Gold-plated : Fu" , 1u" , 3u" , 6u" , 15u" , 30u" , 50u"

Application : TV , Set Box , IP CAMER , DVR, VOIP , Computer

Main Products : RJ45 With Transformer , USB connector , Pin header and Female header

OEM/ODM : OEM Service Offered Design Service Offered Buyer Label Offered

Contact Now


90 Degree RJ45  4 Port With LED And Shielded , 8P8C Side Enter Gold Plating


Specifications


Connector Type

Jack

Number of Positions/Contacts

8p8c (RJ45, Ethernet)

Number of Ports

4

Number of Rows

1

Mounting Type

Through Hole

Orientation

90° Angle (Right)

Termination

Solder

Shielding

Shielded, EMI Finger

Ratings

Cat3

Features

Board Lock

LED Color

Yellow / Green

Tab Direction

Up

Contact Material

Copper Alloy

Contact Finish

Gold

Contact Finish Thickness

Flash

Housing Material

Thermoplastic



MECHNICAL:

1. Durrability:750 cycles min.
2. PCB Retentton PRE-SOLDER:1 LB min.

ENVIRONMENTAL:

1. Storage:-40℃ TO +85℃.
2. Operatton:0℃ TO 70℃.

MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.

MATERIAL:

1. Housing Material:glass filled polyester(UL94V-0).
2. Contact Material:phosphor bronze φ0.46mm (C5 100).
3. Plating:glod plating over nickel.
4. SHIELD COPPER ALLOY(OR STEEL ALLOY):0.20mm thickness plating NI.
5. LED:option.

ELECTRICAL:

1. VOLTAGE RATING:125 vac rms.
2. CURRENT RATING:1.5 amp.
3. CONTACT RESISTANCE:50 milliohms max.
4. INSULATION RESISTANCE:500 megohms min @ 500V DC.
5. DIELECTRIC WITHSTANDING
    RESISTANCE:1000V AC rms 50Hz. 1min.
6. LED RATINGS:forward voltage:2.2 volts typical.
    reverse voltage:5 volts maximum.

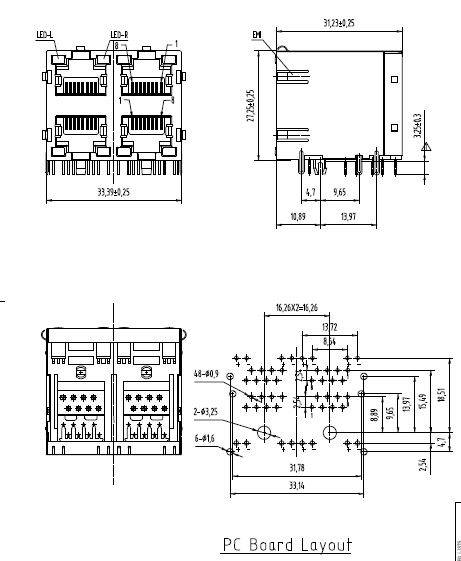

Drawing

90 Degree RJ45  4 Port With LED And Shielded , 8P8C Side Enter Gold Plating
( PHC )

4 Port 90 Degree RJ45 With LED And Shielded , 8P8C Side Enter Gold Plating


Why Choose PengHui

Quality :

Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing , packing .All the step are doing by ourself . So we can control the quality .


  Manufactured under strict controls

  RoHS compliance

  ISO 9001:2008

  OEM  for PULSE

  UL Certification

  Active Environmental policy

  Reach Cetitifaction

 Every module  tested 3times  (not just batch tested)


Unit Price

Charge only 35% ~ 60% of Pulse , (Midcom), Bothhand Belfuse, Tyco, Halo,....Etc


All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as possible
PHC consists of 3 subordinations , located partly in  Hunan ,Hubei ,Guangdong .
With large scale of production lines, we can reach to cost reduction at the most extent




Production&Testing


PHC have more than 30 units automation equipments to product as possible
PHC Every  Magnetic RJ45 tested 3times  (not just batch tested)

PHC Every SMT part used Automation testing and packing.



Service

PHC Offer good pre-sales & after-sales service &Strong technical support


New Project: Strong technical and ideal support your new design

Existing projects: Try to help customer to save the cost to offer the good quality product
and save time.

Free Samples: 3-5 PCS of each part number.
Shipping Fee : We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
Customer complaint: 24-48 hours reply 8D report.

Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,
or repair kits , if customers are not satisfied)

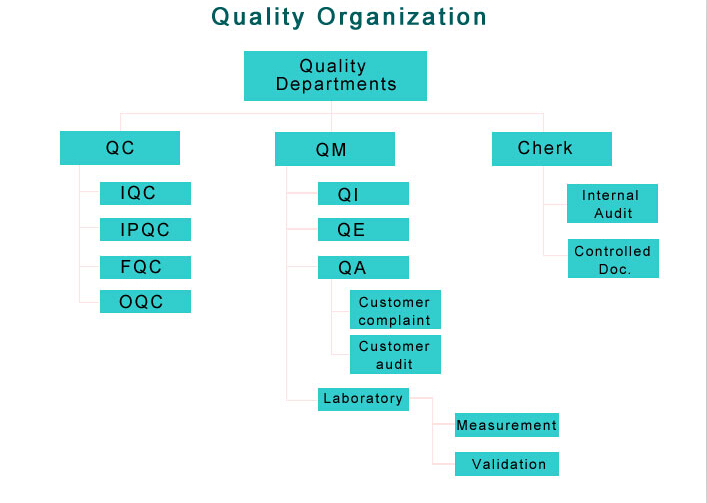

Quality Department Organization Chart

4 Port 90 Degree RJ45 With LED And Shielded , 8P8C Side Enter Gold Plating

Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions

                                                                                                       -------------  PHC  Sales & Support Team
