90 Degree 4 Ports RJ45 Jack and with Giga Integrated Magnetic Connector
Spectifications
Feature:
1. Complies with IEEE standards and all 10/100 Ethernet specificatons including 350uH
with 8MA DC bias
2. Contact:Phosphor Bronze, 6u-inch gold flashed unless specified
3. Housing:Thermoplastic LCP UL94V-0 rated
4. Operating Temperature: 0℃ --70℃
5. Storage temperature: -40℃--85℃
Peak reflow temperature rating 245℃
1. Minimum1500Vrms isolation perIeee 802.3requirement
Electrical Specifications:
1.Turns Ratio: Tx & Rx+1:1±5%
2. Insertion Loss:1-30MHz:-1.0dB Max
3. Return Loss:1-30MHz:-16dB Min; 60-80MHz:12dB Min
4. Common Mode Rejection:1-100MHz:-30dB Min;200MHz:-20dB Min
5. Crosstalk:1-100MHz:-30dB Min
6. OCL:100KHz,0.1V,8MADC:350uH Min
7. Hi-Pot:1500VAC,1mA,1Sec
Lead-free process,compliant RoHS
LED Specification
| Standard LED Color: | LED Wavelength: | Forward (V MAX): | Typical (V TYP): | Luminous |
| Green | 560-580 nm | 2.5V | 2.1-2.2V | 9-25 MCD |
| Yellow | 580-610 nm | 2.5V | 2.1-2.2V | 9-30MCD |
| Orange | 580-610 nm | 2.5V | 2.1-2.2V | 50-100MCD |
| | | | | |

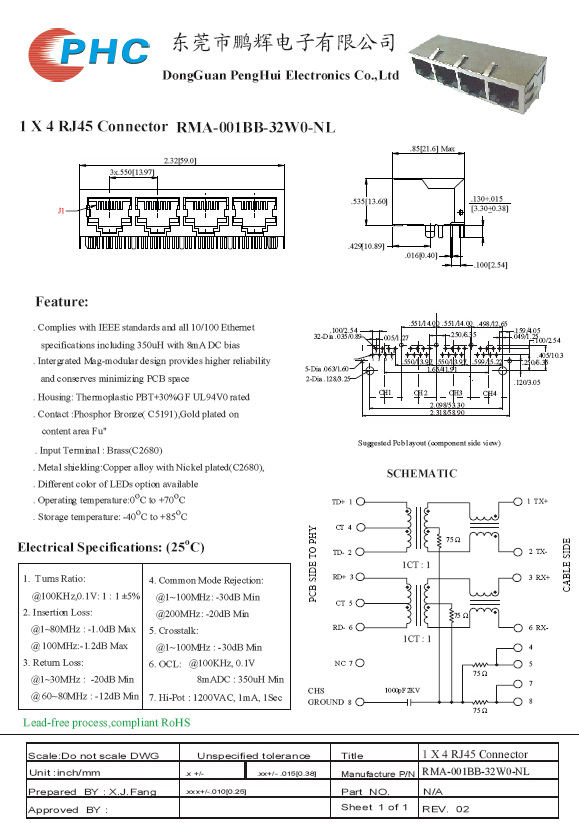

Drawing
90 Degree 4 Ports RJ45 Jack and with Giga Integrated Magnetic Connector
Why Choose PengHui
Quality :
World’s Leader supplier of Integrated RJ45 Connector and PCB connector
Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,
packing .All the step are doing by ourself. So we can control the quality.
1. Manufactured under strict controls.
2. ISO 9001:2008
3. UL Certification
4. Reach Cetitifaction
5. RoHS compliance
6. OEM for PULSE
7. Active Environmental policy
8. Every module tested 3times (not just batch tested)
Production&Testing
PHC have more than 30 units automation equipments to product as possible
PHC Every Magnetic RJ45 tested 3times (not just batch tested)
PHC Every SMT part used Automation testing and packing.
Lead Time
With large Popularity of 450 Workers distributed in 4 subsidiary corporations, PHC can offer
the fastest Lead time,and the particular case is according to the situation.
| Case.1 | Stock | 25% |
| Case.2 | 3-4 Weeks | 70% |
| Case.3 | 5-6 Weeks | 5% |
Service
PHC Offer good pre-sales & after-sales service &Strong technical support
1. New Project: Strong technical and ideal support your new design
2. Existing projects: Try to help customer to save the cost to offer the good quality product
and save
3. time.
4. Free Samples:3-5 PCS of each part number
5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
6. Customer complaint:24-48 hours reply 8D report
7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,
or repair
8. kits if customers are not satisfied
